Stainless Steel Studs Product Introduction And Application Specifications

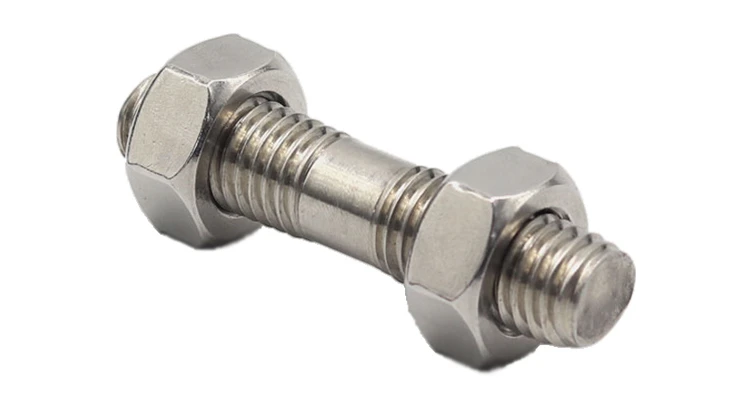

Stainless steel studs are special fasteners with full threads on both ends and no bolt head, used with two matching nuts. With this structure, the threads at both ends of the stud can penetrate the connected components respectively. The two nuts perform bidirectional compression and fastening. Disassembly and assembly do not require removing the stud itself, making installation and maintenance more convenient and efficient. They are widely used in various special assembly structures.

Stainless steel studs are mainly made of grade 304 or 316 stainless steel. They feature excellent oxidation resistance, acid and alkali resistance and anti-corrosion performance. They can work stably for a long time under harsh conditions such as humidity, salt spray and chemical corrosion, and have a much longer service life than ordinary carbon steel studs. They are core fastening parts for corrosive working conditions.

Core Advantages of Stainless Steel Studs

Convenient and efficient assembly: The bidirectional locking structure with threads at both ends does not require additional fixing accessories. It fits embedded and through-type assembly structures with simple installation procedures, suitable for various fixed connection scenarios.

Simple disassembly for maintenance: When repairing or replacing components, users only need to loosen the nuts at both ends without removing the stud body, which greatly reduces equipment maintenance difficulty. It is suitable for structural parts requiring frequent inspection and repair.

Space-saving assembly: Without protruding bolt heads, the overall layout is compact and will not cause assembly interference. It is especially suitable for narrow spaces, sealed equipment, embedded installation and other working conditions requiring compact layout.

Strong corrosion resistance and wide adaptability: Stainless steel material has good rust and corrosion resistance, which can effectively resist moisture, acid and alkali media and salt spray erosion. It is applicable to harsh environments such as outdoors, ships and chemical industries.

Main Application Fields

Stainless steel studs are widely used in general mechanical equipment, marine equipment, chemical anti-corrosion equipment, building steel structures, pressure vessels, pipe flanges and precision tooling equipment. They are commonly used for flange connection, thick part connection, embedded fixing and heavy-load structural connection. During actual use, it is necessary to select matching size and thread specifications according to working conditions and implement standardized installation and tightening to ensure connection stability and overall reliability.

Notes for Use

1,Matching thread specifications: Accurately match thread specifications and length dimensions according to the standard of equipment screw holes. Common specifications include metric M series and imperial UNC/UNF series to ensure accurate thread engagement and prevent assembly failure caused by mismatched specifications.

2,Control tightening torque strictly: Tighten nuts at both ends evenly in accordance with standard torque during installation. Excessive torque will lead to thread stripping, stud deformation or component damage; insufficient torque may cause structural loosening and vibration displacement. Moderate tightening force and uniform stress shall be guaranteed.

3,Proper selection of matching nuts: Select corresponding accessories according to load and anti-loosening requirements. Standard nuts, spring lock nuts, anti-loosening washers and other combined structures can be adopted to improve the anti-vibration and anti-loosening capacity for working conditions with vibration and alternating load.

4,Select stainless steel grades according to operating environment: Grade 304 stainless steel is suitable for conventional humid and ordinary outdoor environments with high cost performance. Grade 316 stainless steel has stronger resistance to acid, alkali and salt spray corrosion, and is used for harsh working conditions such as marine and heavy chemical corrosion. Material selection shall be determined based on the actual service environment.

5,Regular inspection and maintenance: Check the tightening status of studs and nuts regularly during equipment operation, inspect for abnormalities such as loosening, rusting and thread wear, and retighten or replace accessories in a timely manner to ensure stable long-term operation of the structure.

6,Professional consultation for special working conditions: For special application scenarios such as heavy corrosion, high temperature, high pressure and high-precision equipment, it is recommended to consult professional engineers or qualified suppliers to obtain accurate selection schemes and assembly technical guidance.

Summary

Stainless steel studs are high-performance fasteners featuring compact structure, easy disassembly and assembly, and excellent anti-corrosion durability. They meet the structural connection requirements of most conventional and corrosive working conditions. Rational type selection, standardized torque installation and regular maintenance can give full play to their structural advantages and guarantee the safety, stability and durability of equipment connections.
